KBC 600V 35-800A
For new installations, Bussmann recommends the
700 Volt FWP series fuse. The 600V fuses are supplied
as replacements only.
| Type | Ordering Information | Dimensions | ||||
|---|---|---|---|---|---|---|
| Part Number | Carton Qty. | Carton Weight (Lbs) | Figure Number | |||
| KBC 600V | KBC-35 | KBC-45 | KBC-60 | 10 | 1.40 | Fig. 1 |
| KBC 600V | KBC-40 | KBC-50 | 10 | 1.40 | Fig. 1 | |
| KBC 600V | KBC-70 | KBC-90 | 5 | 1.44 | Fig. 2 | |
| KBC 600V | KBC-80 | KBC-100 | 5 | 1.44 | Fig. 2 | |
| KBC 600V | KBC-110 | KBC-150 | KBC-200 | 1 | 0.48 | Fig. 1 |
| KBC 600V | KBC-125 | KBC-175 | 1 | 0.48 | Fig. 1 | |
| KBC 600V | KBC-225 | KBC-300 | KBC-400 | 1 | 0.77 | Fig. 2 |
| KBC 600V | KBC-250 | KBC-350 | 1 | 0.77 | Fig. 2 | |
| KBC 600V | KBC-450 | KBC-500 | KBC-600 | 1 | 1.32 | Fig. 2 |
| KBC 600V | KBC-800 | 1 | 4.50 | Fig. 3 | ||
1 kg = 2.2 lbs 1 lb = 0.45 kg
†U.L. Recognition on 35 through 600 amperes only.
• Interrupting rating 200kA RMS Symmetrical.
• Consult Bussmann for DC ratings.

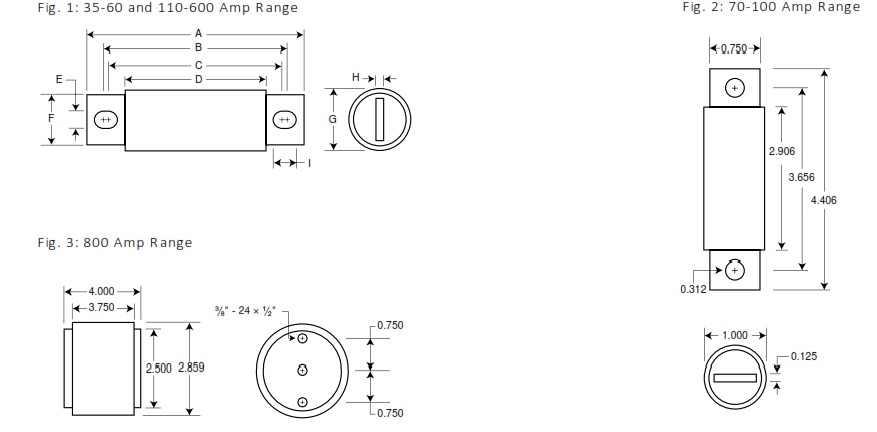

Dimensions
Dimensions
| Order # | Fig. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|
| KBC-35-60 | 1 | 4.375 | 3.750 | 3.500 | 2.750 | 0.343 | 0.625 | 0.813 | 0.094 | 0.468 |
| KBC-70-100 | 2 | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing |
| KBC-110-200 | 1 | 4.406 | 3.719 | 3.594 | 2.906 | 0.975 | 0.875 | 1.219 | 0.187 | 0.375 |
| KBC-225-400 | 1 | 5.125 | 4.188 | 3.563 | 2.906 | 1.000 | 1.000 | 1.500 | 0.250 | 0.719 |
| KBC-450-600 | 1 | 5.125 | 4.389 | 3.687 | 2.875 | 1.500 | 1.500 | 2.000 | 0.250 | 0.757 |
| KBC-800 | 3 | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing | See Drawing |
Dimension in inches.
1mm = 0.0394· 1· = 25.4mm
