FWX 250V 35-2500A

Electrical Characteristics					Ordering Information			Dimensions
Type	Rated current RMS-AMPS	l2t (A2 Sec)		Watts loss	Part Number	Carton Qty.	Carton Weight (Lbs)	Figure Number
		Pre-arc	Clearing at 250V
FWX 250V	35	50	230	4.2	FWX-35A	5	1.40	Fig. 1
FWX 250V	40	60	310	5.2	FWX-40A	5	1.40	Fig. 1
FWX 250V	45	80	390	5.7	FWX-45A	5	1.40	Fig. 1
FWX 250V	50	100	520	6.0	FWX-50A	5	1.40	Fig. 1
FWX 250V	60	140	740	8.1	FWX-60A	5	1.40	Fig. 1
FWX 250V	70	330	1400	7.2	FWX-70A	1	0.32	Fig. 1
FWX 250V	80	430	1850	8.1	FWX-80A	1	0.32	Fig. 1
FWX 250V	90	570	2450	9.0	FWX-90A	1	0.32	Fig. 1
FWX 250V	100	740	3150	10.0	FWX-100A	1	0.32	Fig. 1
FWX 250V	125	1130	4850	12.5	FWX-125A	1	0.32	Fig. 1
FWX 250V	150	1620	6950	15.7	FWX-150A	1	0.32	Fig. 1
FWX 250V	175	2170	9300	18.5	FWX-175A	1	0.32	Fig. 1
FWX 250V	200	2790	12000	22	FWX-200A	1	0.32	Fig. 1
FWX 250V	225	3210	14700	24	FWX-225A	1	0.52	Fig. 1
FWX 250V	250	3960	18100	27	FWX-250A	1	0.52	Fig. 1
FWX 250V	275	4720	21600	31	FWX-275A	1	0.52	Fig. 1
FWX 250V	300	6000	27300	32	FWX-300A	1	0.52	Fig. 1
FWX 250V	350	10600	48600	39	FWX-350A	1	0.52	Fig. 1
FWX 250V	400	14500	66100	44	FWX-400A	1	0.52	Fig. 1
FWX 250V	450	22100	101000	49	FWX-450A	1	0.52	Fig. 1
FWX 250V	500	28000	128000	54	FWX-500A	1	0.52	Fig. 1
FWX 250V	600	41100	188000	62	FWX-600A	1	0.52	Fig. 1
FWX 250V	700	48800	190000	72	FWX-700A	1	0.90	Fig. 1
FWX 250V	800	59000	230000	84	FWX-800A	1	0.90	Fig. 1
FWX 250V	1000	44000	360000	100	FWX-1000AH	1	2.86	Fig. 2
FWX 250V	1200	92000	750000	103	FWX-1200AH	1	2.86	Fig. 2
FWX 250V	1500	120000	880000	140	FWX-1500AH	1	2.86	Fig. 3
FWX 250V	1600	160000	1200000	140	FWX-1600AH	1	2.86	Fig. 3
FWX 250V	2000	320000	2300000	151	FWX-2000AH	1	2.86	Fig.3
FWX 250V	2500	670000	4700000	163	FWX-2500AH	1	2.86	Fig.3

Electrical Characteristics

Total Clearing I2t The total clearing I2t at rated voltage and at power factor of 15% are given in the electrical characteristics. For other volt- ages,the clearing I2t is found by multi- plying by correction factor, K, given as a function of applied working voltage, Eg, (RMS).

Arc Voltage This curve gives the peak arc voltage, UL, which may appear across the fuse during its operation as a function of the applied working voltage, Eg, (RMS) at a power factor of 15%.

Power Losses Watts loss at rated current is given in the electrical characteristics. The curve allows the calculation of the power losses at load currents lower than the rated current . The correction factor, Kp, is given as a function of the RMS load current, Ib, in % of the rated current .

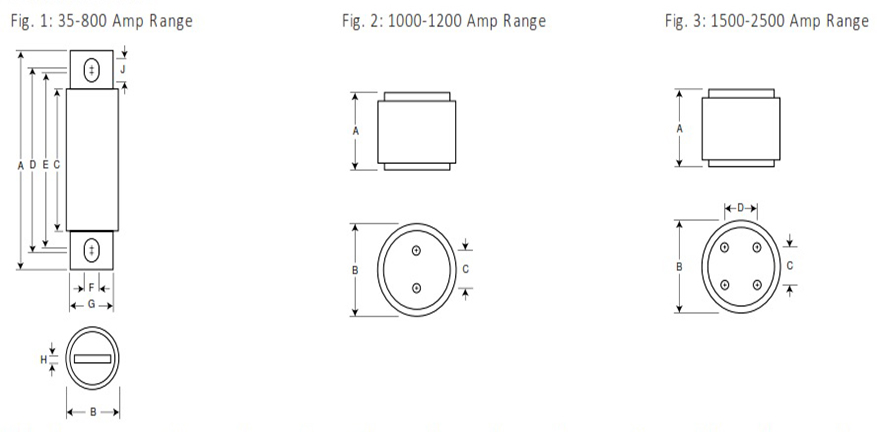

Dimensions

Order #	Fig.	A	B	C	D	E	F	G	H	J	Thread Depth
FWX 35A-60A	1	3.19	0.81	1.59	2.59	2.25	0.34	0.63	0.13	0.52
FWX-70-200A	1	3.13	1.22	1.59	2.44	2.19	0.34	1.00	0.19	0.47	-
FWX-225A-600A	1	3.84	1.50	1.59	2.94	2.25	0.41	1.00	0.25	0.75	-
FWX-700A-800A	1	3.84	2.00	1.59	3.03	2.28	0.41	1.50	0.25	0.78	-
FWX-1000AH-1200AH	2	2.59	3.00	1.50	-	-	-	-	-	-	Tapped3/8"-24x1/2"
FWX-1500AH-2500AH	2	2.59	3.50	1.50	1.50	-	-	-	-	-	Tapped3/8"-24x1/2"
